Edge Device Templates
The Template List provides you with an overview about available templates. From the Templates List, you can access all templates available for different companies, projects, or instances from the Admin Console.
Three scopes are defined for a template:
- Instance: The template can be applied to all companies and projects for this Belden Horizon Data Manager
- Company: The template can be applied to all projects for a company
- Project: The template can be applied to all device for this project
For each template, the following displays:
- Description: A description of the template.
- Template Scope: This determines where templates can be applied in the Belden Horizon Data Manager.
- Company: The company for which the template can be applied.
- Template data: Shows the number of devices and flows within the template.
- Created At: The date the template was uploaded to Belden Horizon Data Manager
- Parameterized: Indicates if the selected template is simple or parameterized using False and True respectively.
- Action: Allows you to select the following actions for each template:
- Edit template
- Download template
- Delete
Templates are created externally and can be uploaded from a file.
Simple templates are used to duplicate the field data for one instance, company or project to multiple other instances, companies or projects in Belden Horizon Data Manager. This comes in handy when most field data is the same.
For example, if most configuration information for devices in the same project are the same, you can use a simple template when adding new devices to the project.
Parameterized templates are used when you want to change specific names or types of configuration information for instances, companies or projects.
For example, if some of the configuration information for devices, such as the name, in the same project are different, you can use a parameterized template when adding new devices to the project.
Access Edge Device Templates UI
To access the edge device templates UI:
1. Log in to Belden Horizon Data Manager Admin Console.
2. From the Navigation panel, select Edge Devices. Edge Device's Edge Software Update pane by default appears.
3. From Edge Device's navigation sub-panel, select Edge Devices Templates. Edge Device's Edge Devices Templates pane appears.

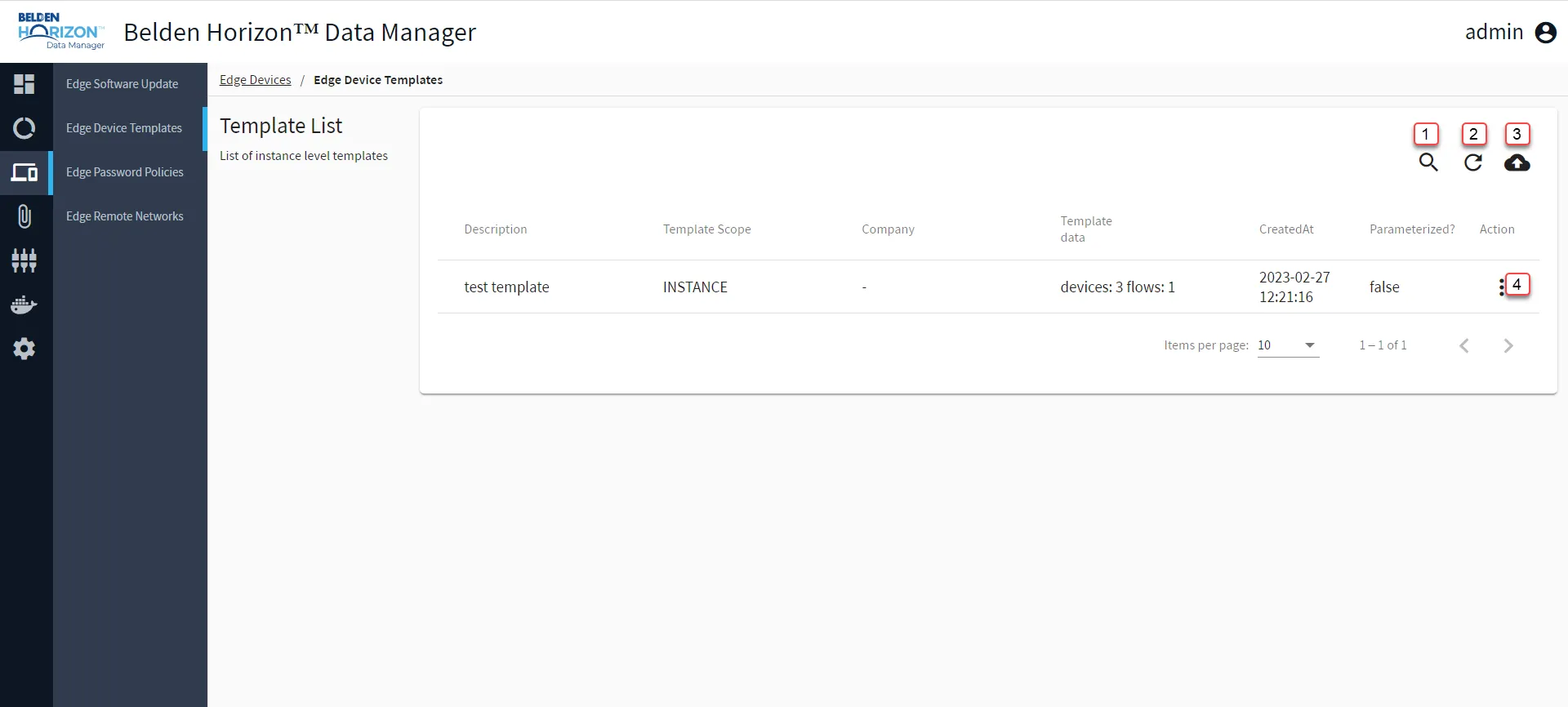

Refer to the following actions you can take on Belden Horizon Data Manager Admin Console Edge Device's Edge Device Template pane.
[1] Show filter / Hide filter: Search by Description or Company
[2] Refresh
[3] Upload Template: Simple Template or Parameterized Template
[4] Action menu:
- Edit Template
- Download Template
- Delete
Upload Templates
You can upload a simple or parameterized template from the Templates List section.
Simple Templates
Simple templates are used to duplicate the field data for one instance, company, or project to multiple other instances, companies, or projects in Belden Horizon Data Manager. This comes in handy when most field data is the same.
For example, if most configuration information for edge devices in the same project is the same, you can use a simple template when adding new devices to the project.
Parameterized Templates
Parameterized templates are used when you want to change specific names or types of configuration information for instances, companies, or projects.
For example, if some of the configuration information for devices, such as the name, in the same project is different, you can use a parameterized template when adding new devices to the project.
The simple template is uploaded as a JSON file, and the parameterized template is uploaded as a ZIP file.
[1] Select Simple Template (JSON) / Parameterized Template (.ZIP):
[2] Select File
[3] Enter Description
