Server Search

2 min

Note: The Server Search option is available for Belden Horizon Data Operations version 3.5.2 and later.

The Server Search option allows you to do a search of available tags for your device and then add those tags to the DeviceHub device.

Notes:

Not all devices have the capability to do a server search. Available devices display an eye icon in the connected DeviceHub device tile.
To use Server Search, you must know the tag names you want to add to your DeviceHub device and search for them before adding them. To view all available tags for a device before adding them, you can use Browse Tags instead.

To use the server search:

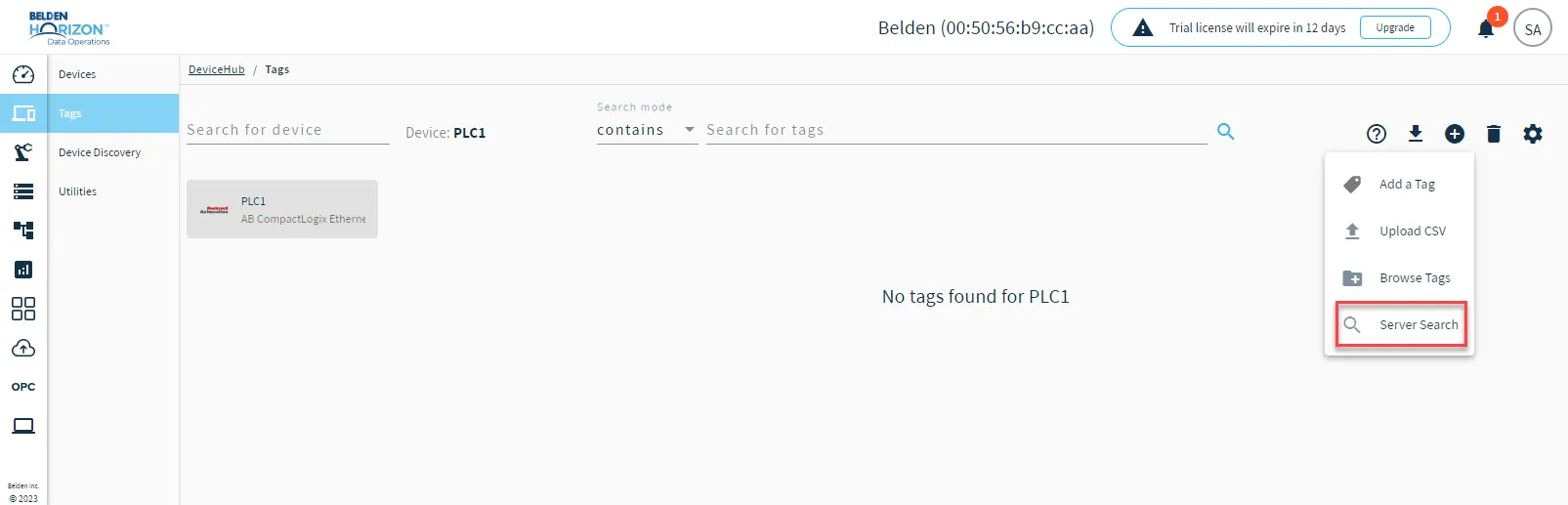

From the Tags pane, click the Add icon, and then select Server Search. The Server Search dialog box appears.
Server Search option
From the Select Device drop-down list, select the device you want to search tags for.
The Select Device drop-down list
Click the Refresh icon to load the tags for the device.
The Refresh icon
Click Next. The Search tags section appears.

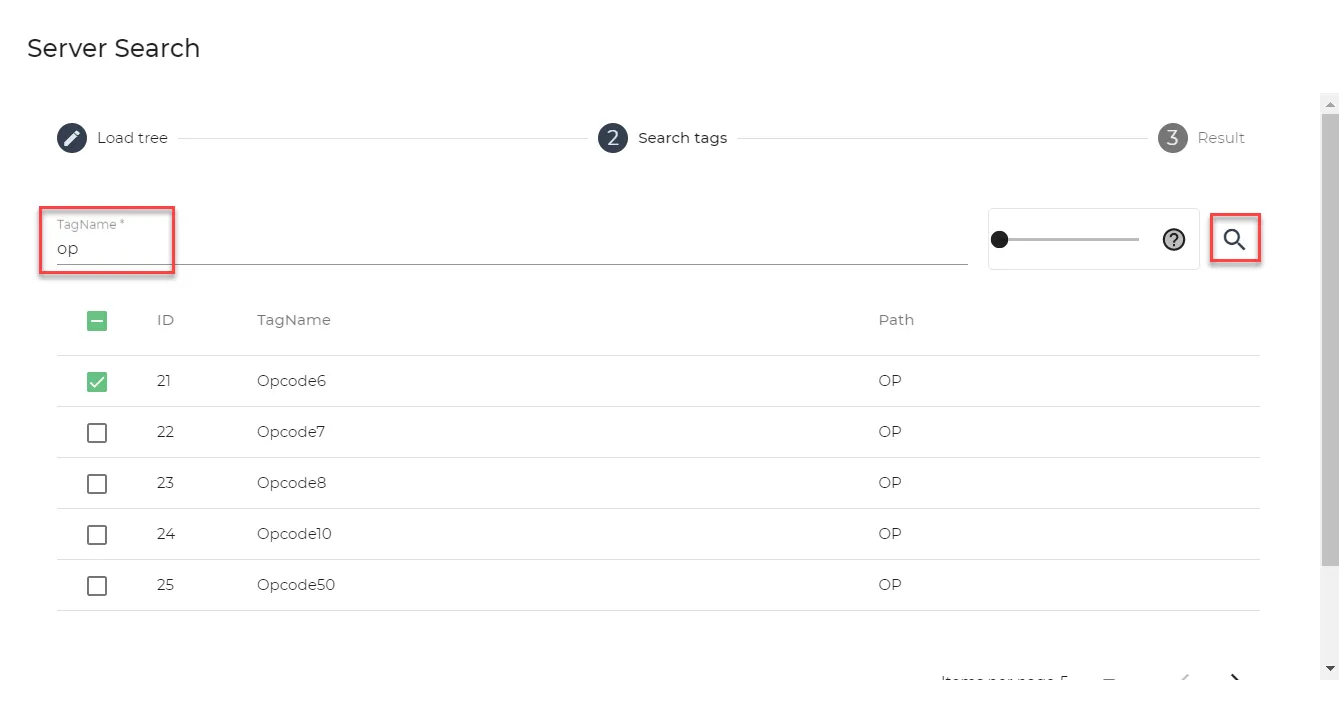

In the TagName search field, enter a search term for a tag you want to add and click the Search icon.
The search field
If needed, move the Similarity Value selector to refine your search. Values range from 0 to 1. A value of 0 means all possible matches for the search term display. A value of 1 means only tags that match the search term exactly display.
Similarity value selector
Click check boxes for the tag(s) you want to create, and then click Create tags. The tag is automatically added to the device and the Result section appears.
Do one of the following:
- Click Close to close the dialog box.
- Click Reset to remove the added tag.
- Click Back to return to the Search tags section and add more tags.
