Manufacture Counter and Capacity Utilization

2 min

Manufacture Counter and Capacity Utilization KPI allows you to view a simple count of the total number of units manufactured in a period and how much output is being produced compared to an ideal scenario.

When creating an analytics flow, refer to details about this function processor by reviewing Processor Flow Parameters.

Other fields available in this KPI are ideal count and unit. This defines how many units should ideally be manufactured in an hour / day / week etc, Capacity Utilization is the ratio of the current number of units manufactured in the time frame, versus the ideal number of units that could have been manufactured withing that time frame.

The following information describes this KPI:

Use Total Units manufactured if you need a simple count of the total number of units manufactured in a period.
Use Capacity Utilization if you want to monitor how much output is being produced compared to an ideal scenario.
The timer interval parameter is useful if the connected input tag is offline but you still want this KPI to look for a value every few seconds, defined by the timer.
You should have an input connected with this KPI with the definition on its connection as manufactureEnd. For example, if you define Manufacture From Value: 0 and Manufacture To Value: 1, this means that when the value from the input tag, with the definition on the connection as manufactureEnd, goes from 0 to 1, it is an indication that a unit was manufactured.

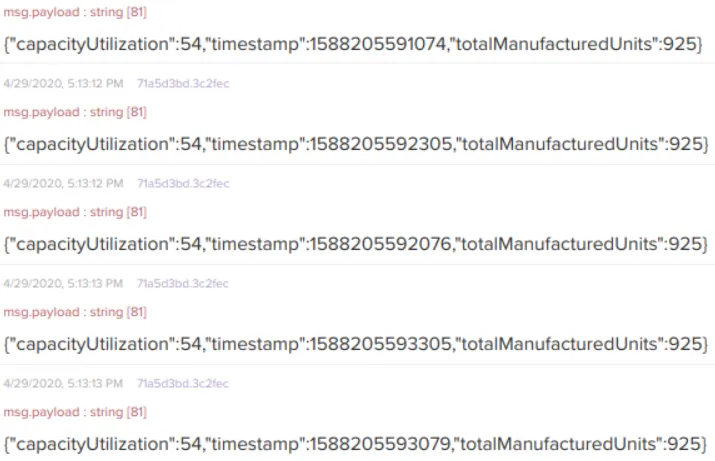

Expected output fields

Manufacture and Counter Capacity Utilization visulization
